Rear valance to quarter panel joint
« on: August 15, 2019, 02:07:17 PM »
 I am fitting my new AMD balance to the body. The AMD part looks very close to the original I still have. The lower quarters were replaced many years ago with unknown brand of part. They appear to have been replaced by a competent shop but the original lumpy valance was not on the car when I got it. I know I have some tweaking to do to get the ends to mate correctly. My question is what is the assembled panel joint suppose to look like. The end of the quarter panel has a bevel in it but without seeing a correctly done one Im not sure where to go with this. Does anyone have a pic they can post showing looking down on it from bumper level  so I can see the silhouette of the joint?

Linkback: https://forum.e-bodies.org/body-shop/5/rear-valance-to-quarter-panel-joint/12591/
« Last Edit: August 16, 2019, 02:57:03 PM by 70RTSE383 »
70 Challenger R/T SE in progress
66 Mustang fastback GT350 clone
Factory Five Cobra
70 Kawasaki H1
70 Honda CT 70

Online Bullitt-

  • Trade Count: (0)
  • Six Pack
  • ****
  • Location: Huntsville AL
  • index in Rear valance to quarter panel joint in Body Shop
  • Posts: 1647
  • If it ain't broke I can't afford it.
    • Share Post
xx in Rear valance to quarter panel joint in Body Shop
Re: Rear valance to quarter panel joint
« Reply #1 on: August 15, 2019, 07:07:48 PM »

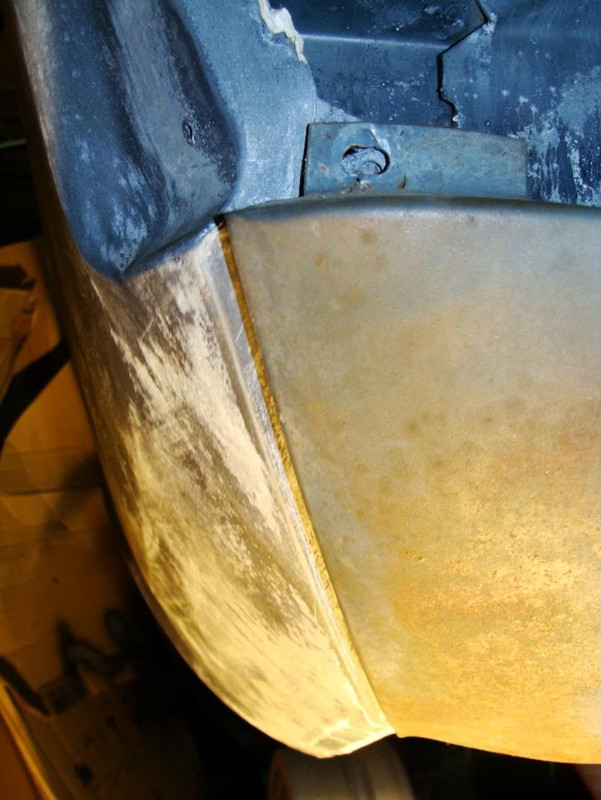

Here's my '73 Challenger OE panels the way they fit when I started .. No damage in the immediate area..

DSC01937 in Rear valance to quarter panel joint in Body Shop

After reworking the bevel on the OE valance to be more acute they fit better.

P1010026 in Rear valance to quarter panel joint in Body Shop

« Last Edit: August 15, 2019, 08:09:17 PM by Bullitt- »
.                                               Doin It Southern Syle        9210059a9782f3876586702e3770db8b in Rear valance to quarter panel joint in Body Shop

Offline jimynick

  • Trade Count: (0)
  • Six Pack
  • ****
  • Location: Cambridge Ontario Canada
  • Posts: 3307
  • If you've got to ask, you don't understand!
    • Share Post
xx in Rear valance to quarter panel joint in Body Shop
Re: Rear valance to quarter panel joint
« Reply #2 on: August 15, 2019, 08:08:32 PM »
They sure do! Stock fitment looked like they'd been thrown on as the car went by; at least mine did. quality control wasn't quite what it is today, shall we say?
In the immortal words of Jimmy Scott- "pace yourself!"

E-Bodies Cuda Challenger Message Forum

xx in Rear valance to quarter panel joint in Body Shop
Re: Rear valance to quarter panel joint
« Reply #2 on: August 15, 2019, 08:08:32 PM »

Offline 70RTSE383

  • Trade Count: (0)
  • Small Block
  • **
  • Location: 91941
  • Posts: 140
    • Share Post
xx in Rear valance to quarter panel joint in Body Shop
Re: Rear valance to quarter panel joint
« Reply #3 on: August 16, 2019, 09:45:44 AM »
Thanks bullitt that really helps.. yours looks much better after some work. The shape of these ends are puzzling. Looks great after you finished though.😊
