340 engine bay wiring routing

[culp71]

trying to finalize wiring under the hood on a 71 340 cuda w shaker...
I don't want to cut the wires until I know I have them routed properly...could someone post some pics of a 340 cuda engine bay or similar, so I can make sure if the wires are to be routed on either driver side or passenger side etc.
one of the biggest in question is the headlight wiring, which side does it come up which side, and crosses over, passes through were, etc? and the wiring to and from the battery on the driver side inner fender.

any for sure placement of any of these wiring routings would be greatly appreciated.
I have googled hundreds of pictures trying to find a constant but nothing is conclusive.

[82firebird]

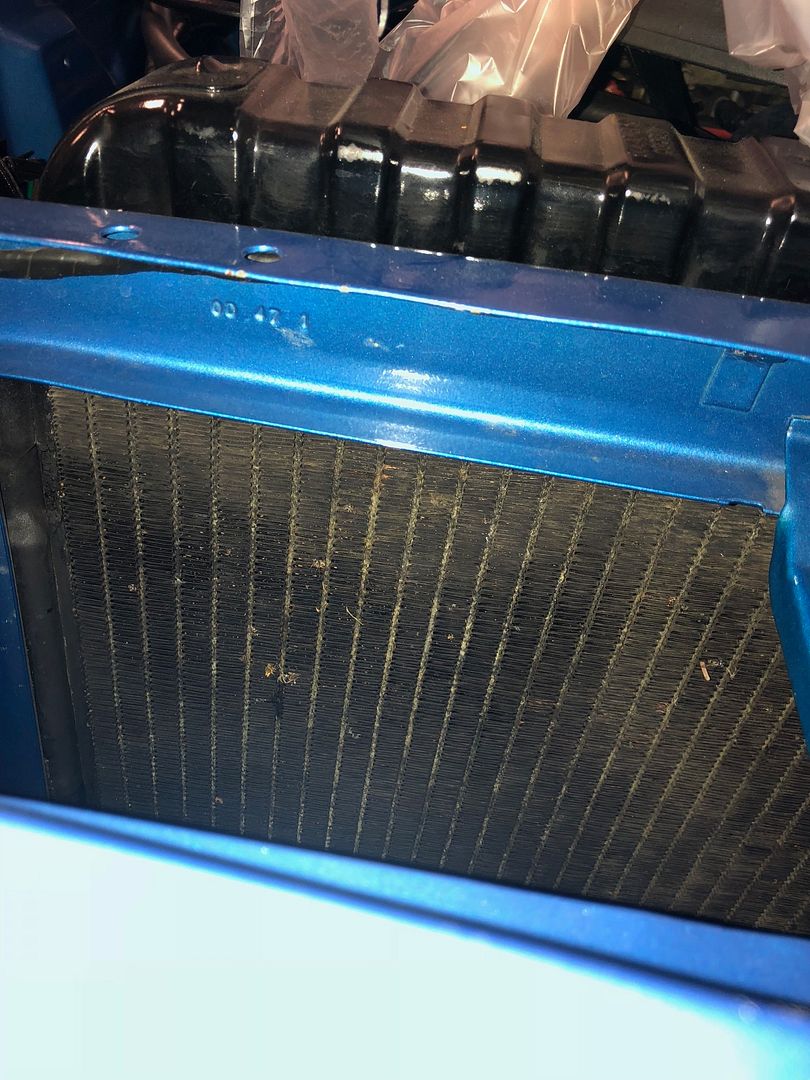

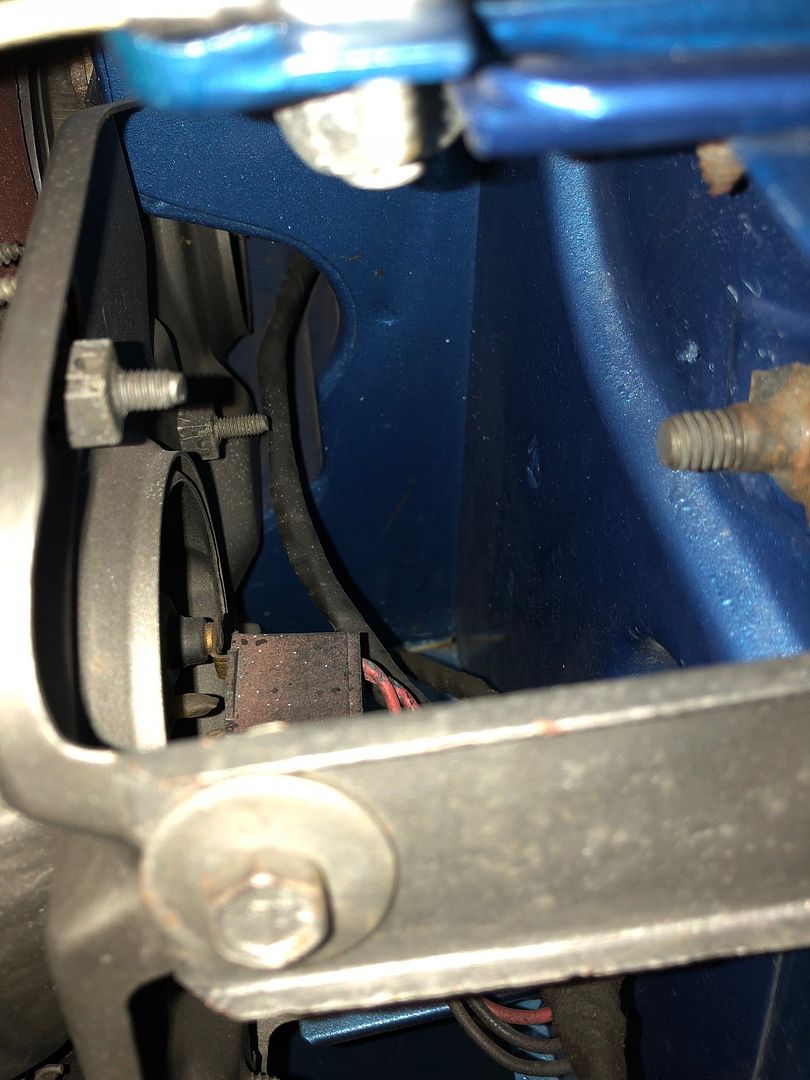

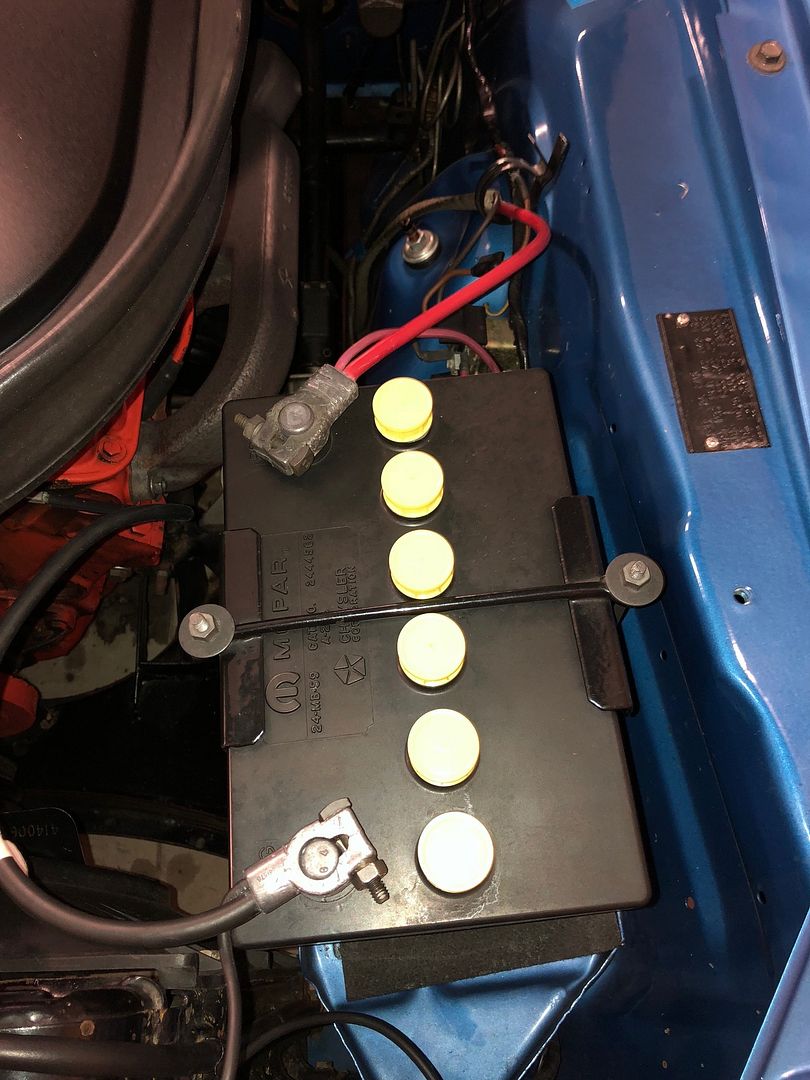

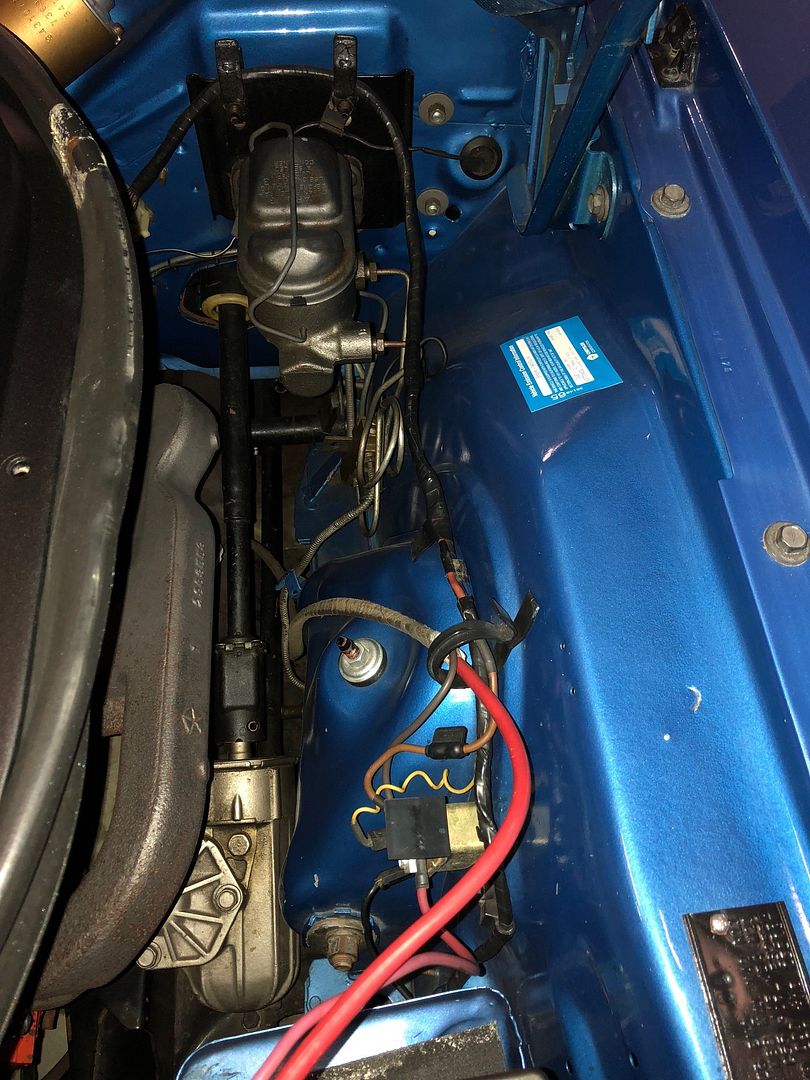

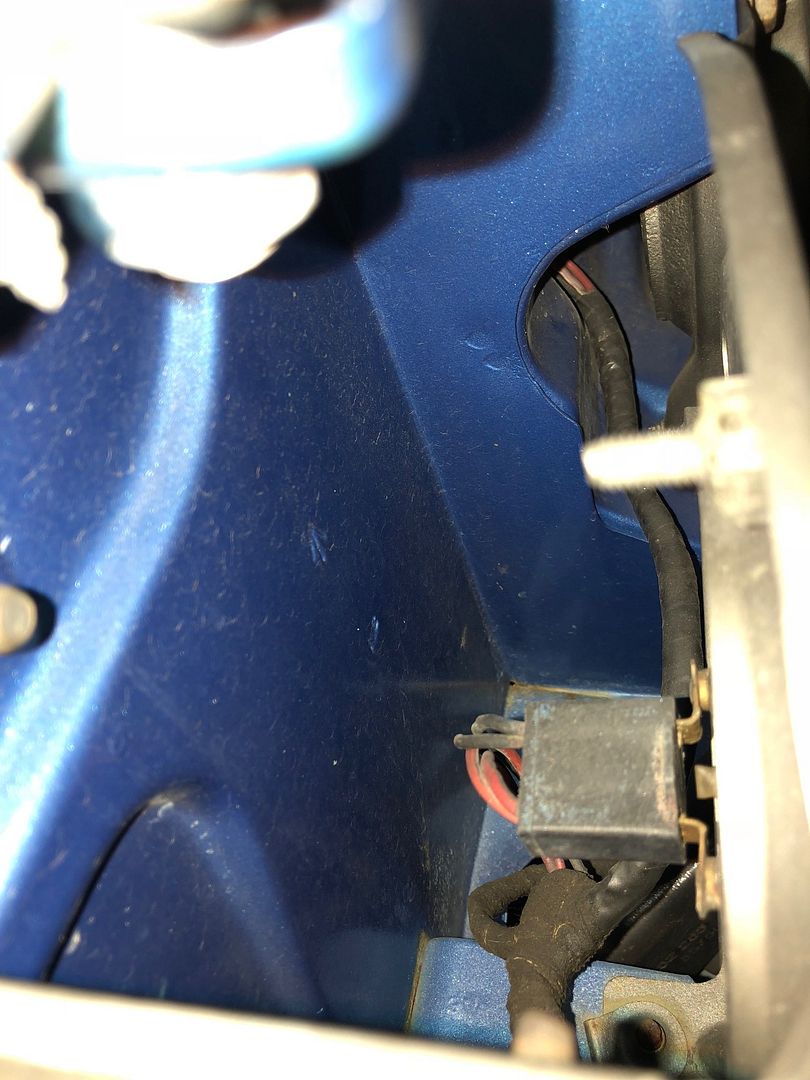

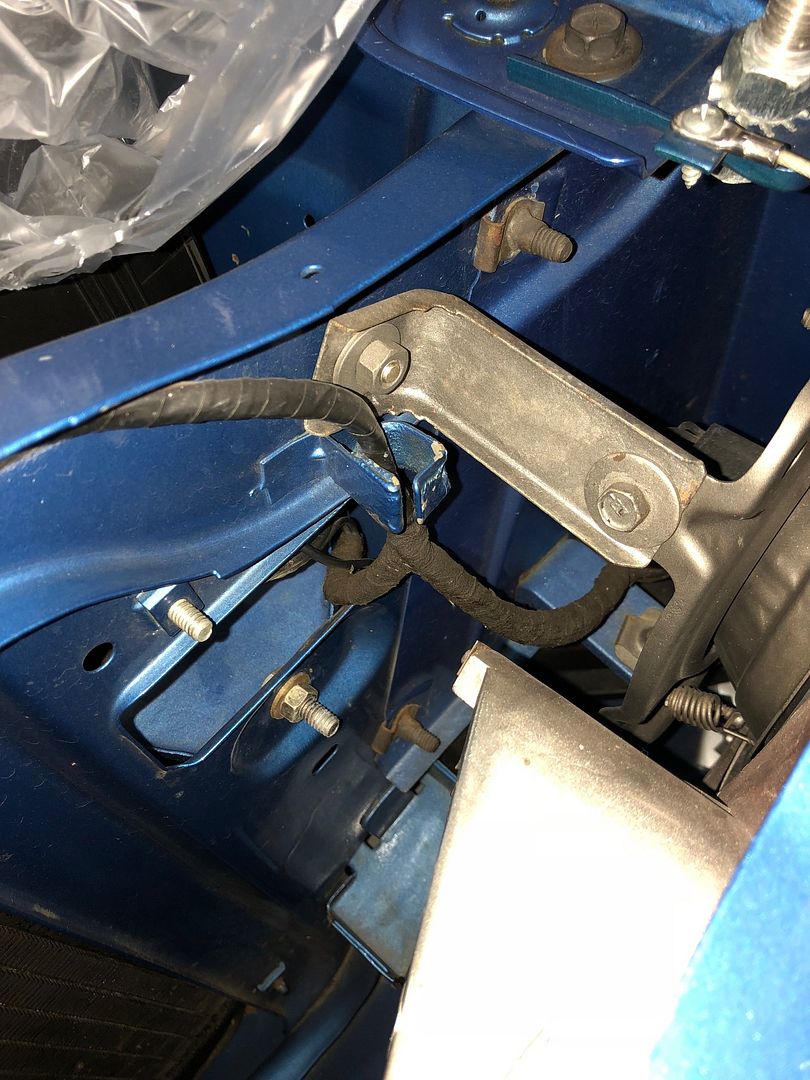

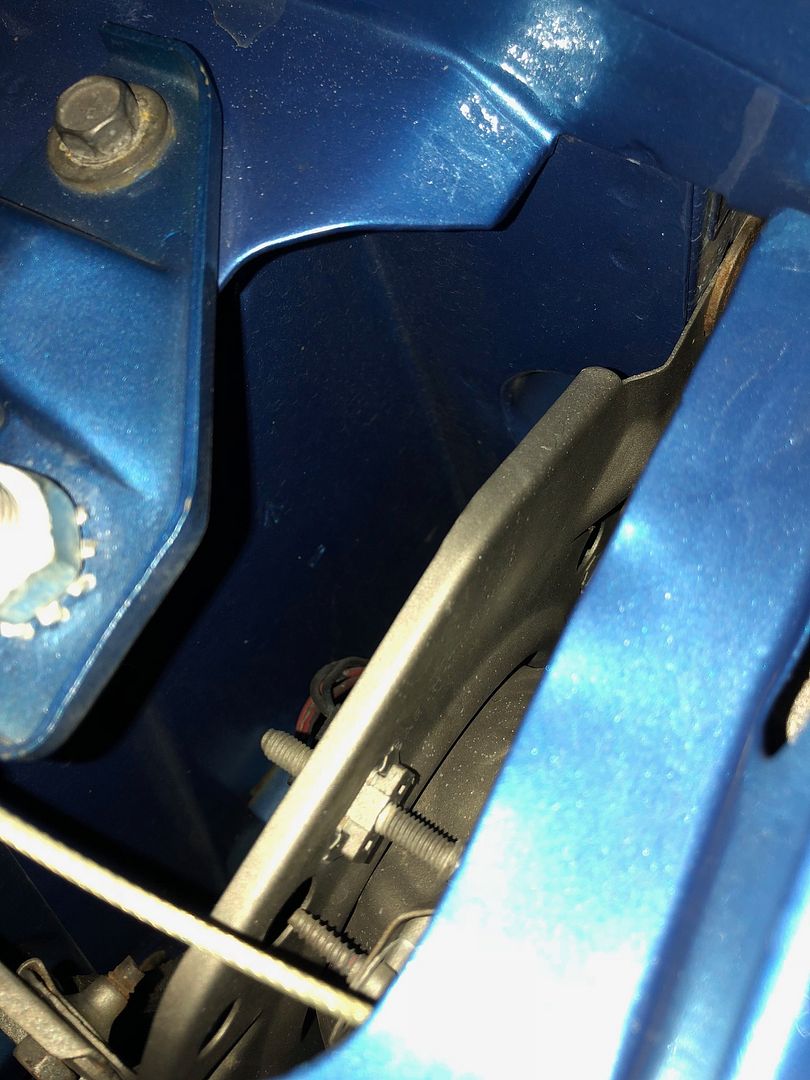

Not an original shaker car, but it seems as though the did most things correctly. Tell me if these are of any use and if there is anything more specific you would like and I will take more.

[Dakota]



[culp71]

holly crap man!! that's more then I could ask for, with this I should finish the wiring under the hood in no time! thank you 82firebird

[82firebird]

Happy to help, just shout if you need more or something more specific!

[ledphoot]

What a great post full of wiring pics! Good timing for me as well, THANK YOU.
