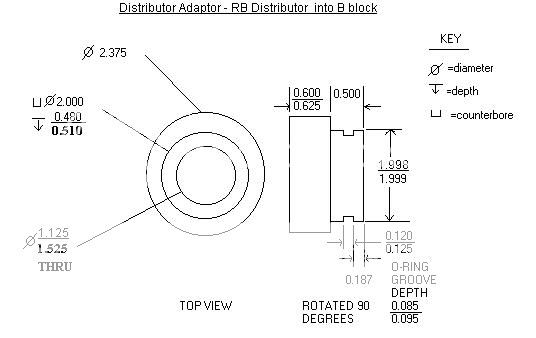

RB to B distributor bushing drawing

Brads70 · March 25, 2017, 05:01:50 AM

Cuda Cody · March 25, 2017, 08:12:32 AM

Really neat!

HP_Cuda · March 25, 2017, 10:22:02 AM

Brad

Can you help me understand why? Is it because you have more RB choices than B distribs?

Cool fab though!

B

blown motor · March 25, 2017, 10:54:55 AM

Quote from: HP_Cuda on March 25, 2017, 10:22:02 AM
Brad

Can you help me understand why? Is it because you have more RB choices than B distribs?

Cool fab though!

B

No. Brad was just bored and wanted to play with his shop toys!

Brads70 · March 25, 2017, 11:17:51 AM

My car started out with a 440 installed when I bought it, I bought a rebuild distributor for it when I first got the car. I then built the 451" which is a low deck 400 "B" block, I didn't want to buy another distributor as it was new and worked great, so to use the same distributor you need this spacer.

HP_Cuda · March 25, 2017, 11:47:14 AM

Ahh makes perfect sense.

Now you can go either way on your next build!
